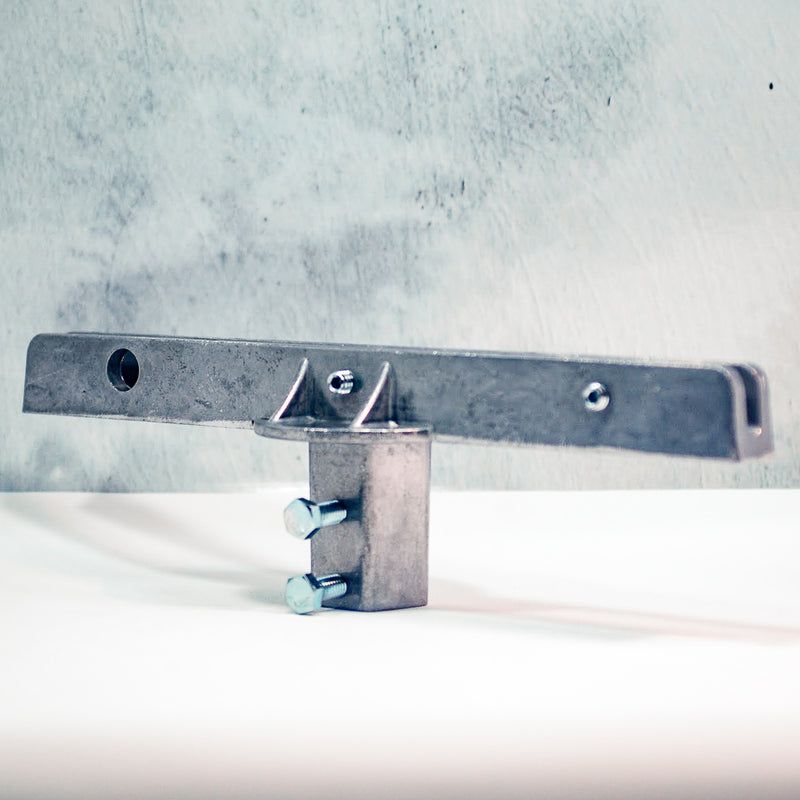

Street Name 12" Bracket for Mounting to Uchannel At 180°

Our street sign bracket is designed for outdoor use in all types of weather and is made from sturdy cast aluminum. Designed for the need of increasingly larger signs, these brackets can accommodate standard 9” tall street name signs. It is made for Mounting Extruded or Flat Signs to u-channel posts at a 180° angle. This bracket is the same as those used as by municipalities, county's, police departments, and construction workers. Made for all types of weather.

KEY FEATURES:

• This bracket is for mounting a Flat or Extruded Sign to a U-channel post.
• This bracket is designed for Flat or Extruded blade signs
• The slot length is 12"
• The slot width is 0.320"
• The Sign Angle is 180°

INSTALLATION SPECIFICATIONS:

•Sign-to-Post Installation

•5/16” Set Screw or Bolt Thru Sign Mounting

     - 8” Center to Center

     - 3/8” From Bottom Edge to Center

• Bolts To U-Channel, 1-3/4”+ Square Posts
